LWS Crude oil 3 phase decanter centrifuge

Product Details

LWS Crude oil 3 phase decanter centrifuge



Description:

3 phase liquid-liquid-solid Decanter centrifuges, also called tricanter , Taking advantage of the principle that the heavy liquid,light liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.It is the popular machine throughout the world and widely used in the crude oil separation.Specially used for remove sludge and water from crude oil.

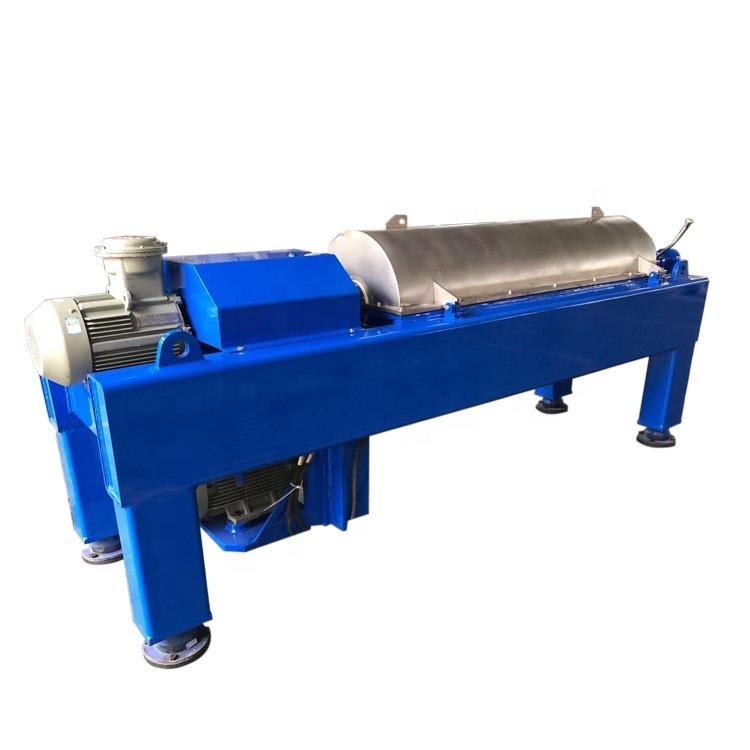

3 phase decanter centrifuge

Application

  • Dewatering and thickening of sludge form municipal and industrial waste water, such as : municipal sludge, paper mill sludge, starch sludge, steel mill sludge, printing and dyeing mill sludge, water works sludge, pharmaceutical sludge, PVC sludge, sewage desulfurization sludge, grain stillage, power plant ash sludge, dairy sludge, beer sludge, drilling mud, electroplating liquid, fermented liquid manure, oil refining sludge, soap sludge, leather sludge, and other types ofsludge.
  • Chemical or pharmaceutical products such as: butane dicarboxylic acid, alum, aluminum hydroxide, ammonium hydrogen carbonate, ammonium nitrate, ammoniumsulphate,anthracene,antibiotics,bariumchloride,bariumcarbonate,barium sulphate, benzene, blood products, blue vitriol, borax, boric acid, calcium carbonate, calcium citrate, calcium hydroxide, calcium nitrate, calcium oxalate, casein, cellulose, chrome yellow, clay, methyl cellulose, corundum, corn plum mule, cooking oil, processed fish, mirabilite, glutamate, hops, pesticide diatomaceous earth, herbicides, tartaric acid, sodium sulphate, sodium phosphate, sodium nitrate, carbon black and others materials.
  • Mineral oil, waste oil, bilge sludge, lubricatingoil.
  • Recovering of animal and vegetal basic products (oils/fats, starch, proteins) animal fat oil separation, like beef oil, pork oil, fish oil, chicken oil ect.
  • Beverages (wine, beer,fruit,Fruit juice separation)
  • Vinasse dewatering
  • Sludge Oil Recovery
  • Medical sludge dewatering
  • Soy protein dehydration
  • Plant oil clarification and separation
  • Cosmetic clarification and separation
  • Bleaching powder separation
  • Coal tar separation



High Configuration LWS Decanter Centrifuge Features

  • 3-phase AC motor for controlled torque starting via frequency converter, Dual Motors drive and Dual Variable Frequency Converter drive to realize the function of soft starting and slowstop;
  • Bowl speed is adjustable via VFD to obtain the required G-force for optimized separation;
  • Conveying speed is adjustable for optimized balance between liquid;
  • Low personnel costs due to continuous and automatic operation;
  • Highest g-force for higher solids output;
  • Automatic adjustment of differential speed via VFD;
  • Belts for both primary motor and secondary motor;
  • All parts coming into contact with the product are made of stainless steel;
  • Main machine parts such as the bowl and scroll conveyor are made of corrosion resistant ,Cemented carbide and high quality carbon steel or stainless steel, offering high maximum bowl speed and high centrifugal force;
  • Wear-proof Ceramic, Tungsten Carbide tiles are sintered on the scroll conveyor;
  • Centripetal pump ,Improve separation efficiency. More convenient on-site adjustment;
  • Multiple safety protection: The overall electric protection (overload, default phase, over-torque of centrifuge protection, etc.); bowl speed and differential speed detection, over-vibration protection, motors overload and over heat protection, bearing temperature monitoring, conveyor torque protection;
  • Advanced special structure, especially the design of BD board on the scroll conveyor, which makes the centrifuge have better performance, greater treating capacity and more efficient separating performance than the usual centrifuge. It’s also energy and additive saving, stably and reliably operating, and easy operating. The centrifuge is certified with ISO9001 qualitysystem;
  • Guiding to select the suitable Decanter Centrifuge Equipment with customers' specific requirements;
  • Our professional technicians would guide and train the customers to install, debug and maintain the Decanter Centrifugemachine;
  • We accept customers' OEM order( According to customers' treating materials and specific requirement, we would re-design the structure to optimize the Decanter Centrifuge maximizingly);
  • Some Models are specially designed with long range sedimentingarea.





Technical Parameter

ModelLWS355X1460LWS420X1680LWX530X2200LWS650X2600
Bowl Diameter (mm) 360 420 530 650
Bowl Length (mm) 1460 1680 2200 2600
Max speed (Rpm) 3600 3500 3000 2600
L/D ratio 4 4 4 4
G-force 2576 2561 2415 2100
Capacity(m3/h) 2-10 3-25 5-45 6-65
Main Drive Motor(kw) 22 30 55 90/75
Auxiliary Drive Motor(kw) 7.5 11 22 30
Weight(kg) 2480 2900 4800 6800
Dimension(mm) 3400x950x1220 3900x1550x1230 4150x1650x1600 4570x1680x1839
Differential Planet gear differential (2K-H two stages)
Differential speed 0.1-30r/min (Frequency conversion adjustment)
Electronic appliance control panel Frequency conversion control cabinet
Main bearing lubricate Grease lubricate (Full automatic lubrication)
Drum material 2304 /2205 duplex stainless steel
The above specification and parameters for reference only.

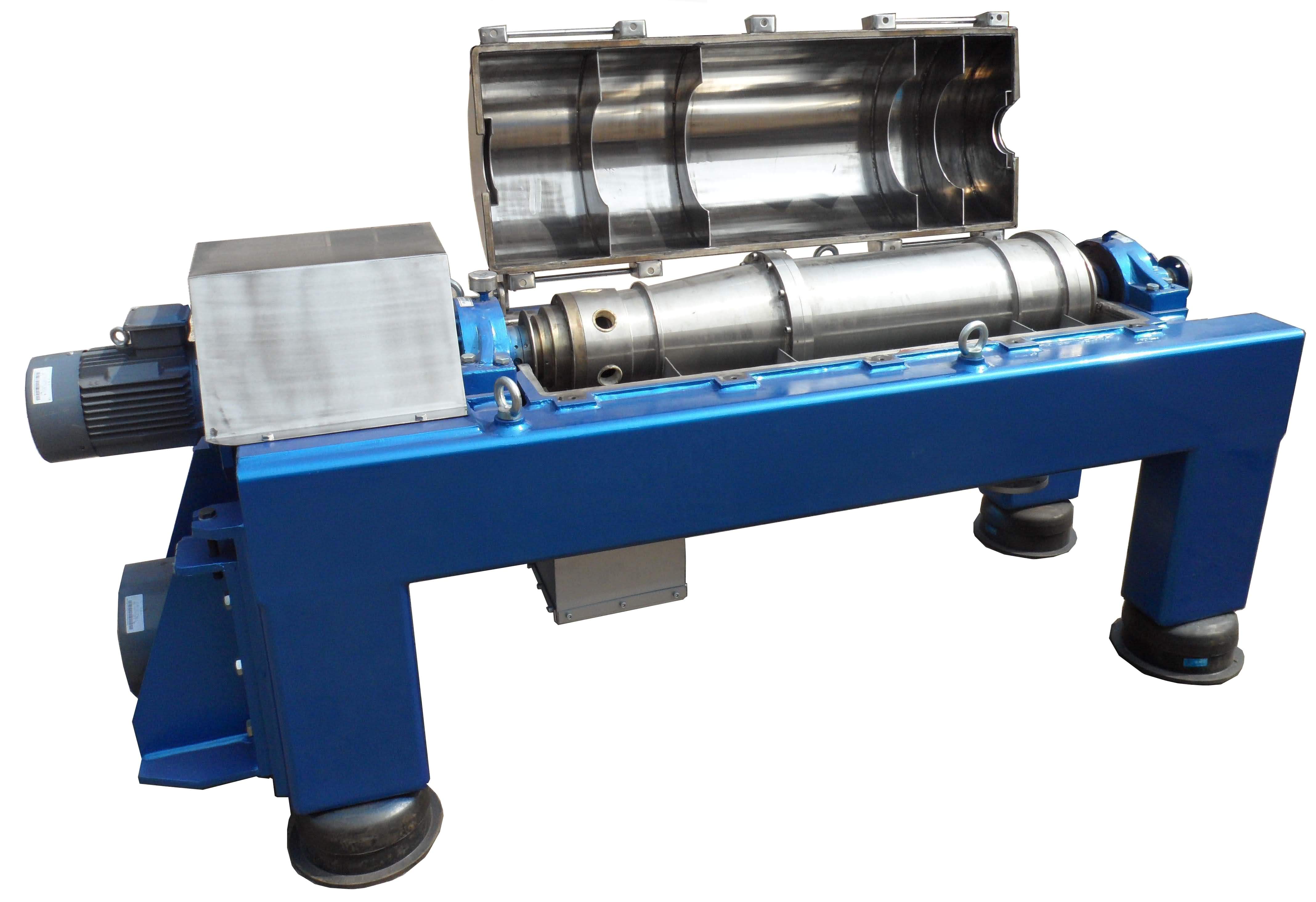

decanter centrifuge details
