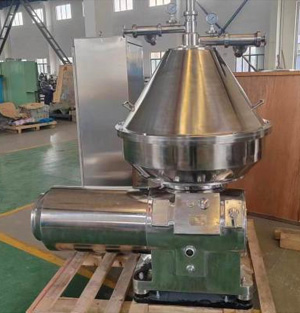

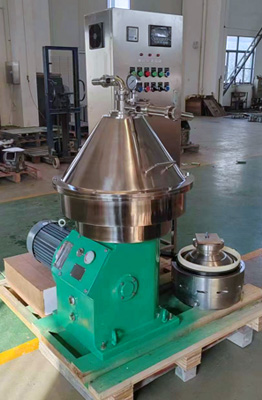

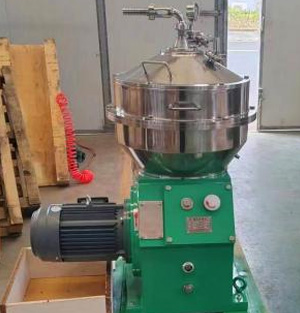

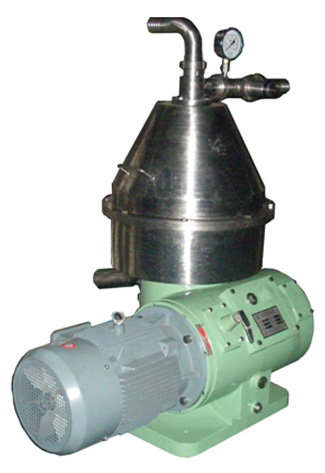

The PJLDH series disc separators are mainly used for beer beverages, biopharmaceuticals, chemical environmental protection, and other industries. They can also be used for the clarification of light phases and concentration of solid phases in liquid-solid separation of similar materials in other industries.
The design, manufacturing, and acceptance of the disc separator strictly follow the national standards GB10897 and GB10898.
Its main characteristics are:
▲ Short body, small size, easy for workers to operate, occupying less workshop space;
▲ Variable frequency starting
▲ Gear transmission
▲ The outlet of the separator adopts a centripetal pump structure, with high outlet pressure. The discharged liquid phase can be directly transported to downstream equipment
▲ There are two options for slag removal methods, which can be automatically controlled by PLC or manually controlled;
▲ The drum adopts a special structure, which has a large processing capacity and good clarification effect
| Model | Capacity (L/H) | Motor power (Kw)) | Drum speed (rpm) | Size (mm) | Weight (Kg) |
|---|---|---|---|---|---|
| PJLDH5 | 500 | 1.5 | 7546-8300 | 700x550x800 | 120 |
| PJLDH15 | 1500 | 4.0 | 7320-8052 | 800x600x1250 | 450 |
| PJLDH30 | 3000 | 7.5 | 6535-7188 | 1100x650x1550 | 680 |
| PJLDH50 | 5000 | 11 | 6000-6626 | 1250x850x1600 | 1100 |
| PJLDH100 | 10000 | 15 | 6000-6634 | 1300x1000x1700 | 1500 |
| PJLDH150 | 15000 | 22 | 5635 | 1450x1350x1800 | 2200 |

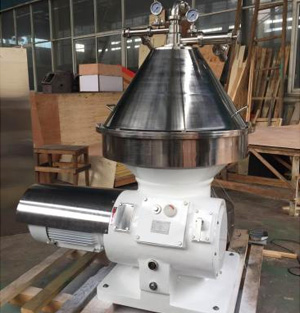

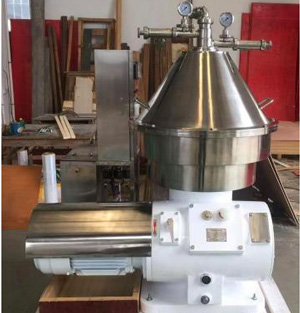

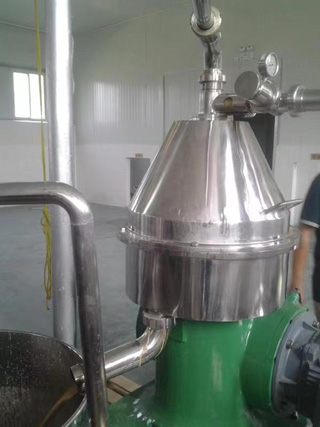

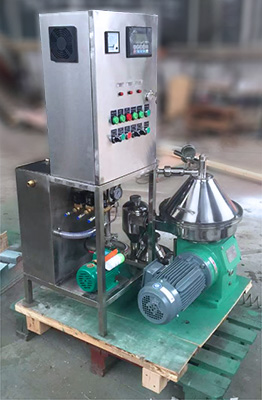

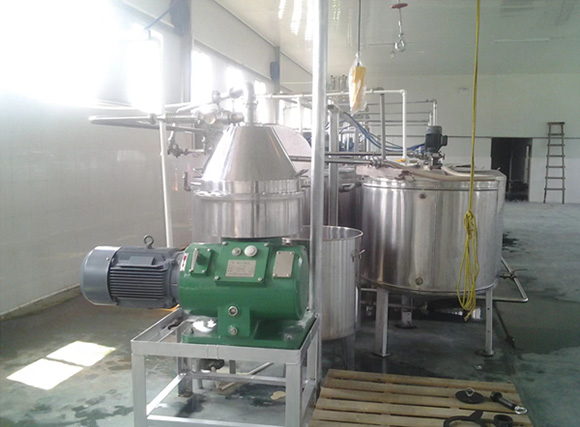

The milk cream separator is one of the sedimentation centrifuges, which is used to separate difficult-to-separate materials (such as suspension composed of viscous liquid and fine solid particles or emulsion composed of liquid with similar density). Disc centrifuge is the most widely used sedimentation centrifuge.
Its principle is to use greater centrifugal force to settle and separate by using the density difference of immiscible substances in materials. It can complete solid-liquid separation, i.e. material clarification, and liquid-liquid separation, i.e. emulsion separation.
Compared with similar products, its characteristics are:
▲ Short body, small size, easy for workers to operate, occupying less workshop space;
▲ The motor has low power and consumes less electrical energy;
▲ Adopting variable frequency starting; Gear transmission
▲ The inlet of the separator is specially designed to prevent fat globules from breaking.
▲ The pressure regulating valve can adjust the concentration of cream at will
▲ The outlet of the separator adopts a centripetal pump structure, and the discharged liquid phase can be directly transported to downstream equipment
▲ This machine has CIP self-cleaning function;
▲ There are two options for slag removal methods, which can be automatically controlled by PLC or manually controlled;
▲ The drum adopts a special structure with a large processing capacity and good defatting and clarification effect.
▲ The fat content in skim milk can be reduced to 0.015-0.05%
| Model | Capacity (L/H) | Motor power (Kw) | Drum speed (rpm) | Size (mm) | Weight (Kg) |
|---|---|---|---|---|---|
| DRS-5N | 500 | 1.5 | 7546-8300 | 770x550x800 | 120 |
| DRS-15N | 1500 | 4.0 | 7320-8052 | 800x600x1250 | 450 |
| DRS-30N | 3000 | 7.5 | 6500-7188 | 1100x650x1550 | 680 |
| DRS-50N | 5000 | 11 | 6022-6626 | 1100x700x1600 | 1100 |
| DRS-100N | 10000 | 15 | 6034-6637 | 1300x1100x1700 | 1500 |
| DRS-150N | 15000 | 22 | 5635 | 1400x1400x1800 | 2000 |

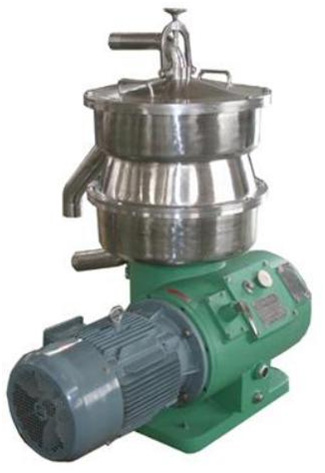

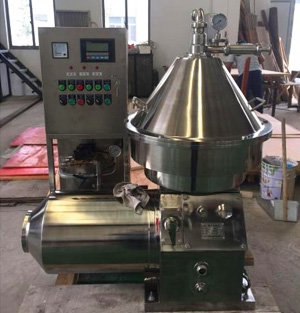

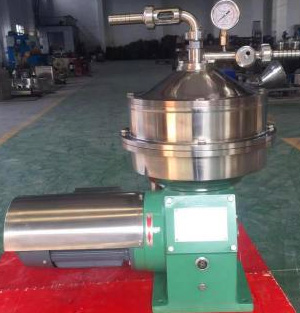

Yeast Separator is one of separators with nozzle around the bowl. It is Used in concentrating barm water with yeast content 10%-30%. It is widely used in concentrating in the industries as barm ,wine, brewage and pigment.
This product absorbs the advantage of the same kind foreign product in Germany All the parts that may contact the feedstock are made of stainless steel. Availably reduce the chemical effect of the feedstock and the machine spare parts.
| Model | DLYE 330 | DLYE 450 |
|---|---|---|
| Bowl inner (mm) | 330 | 450 |
| Bowl speed (r/min) | 6500 | 6000 |
| Separate factor | 8650 | 8540 |
| Light liquid output | open | Centripetal pump |
| Number ot nozzles (Pcs/set) | 12 (all 3 sets) | 12 (all 3 sets) |
| Diameter of nozzle (mm) | φ0.9,φ1.0,φ1.1(adjustable) | φ1.0、φ1.1、1.2(adjustable) |
| Product (L/h) | 3000~5000 | ≤8000～10000 |
| Power (Kw) | 5.5 | 11 |
| Height (Kg) | 580 | 1161 |
| Overall dimension (L*W*H) | 1000*850*1200 | 1366*1403*1434 |
