REYES Machinery (China) Disc Separator Centrifuge – High-Efficiency Industrial Separation Solutions

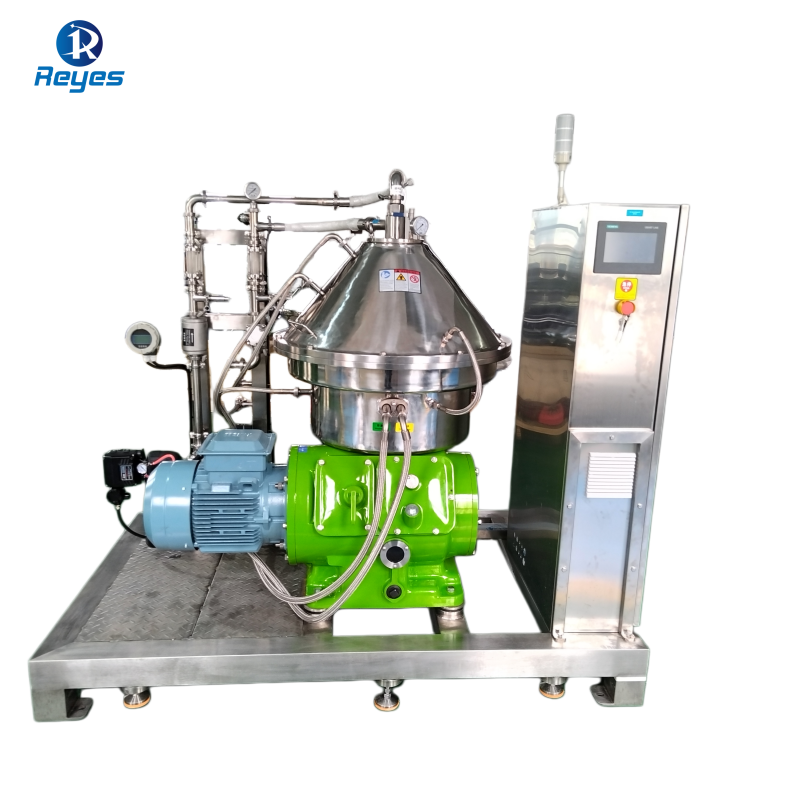

Industrial Disc Stack Separator for Liquid Solid Separation

Product Overview

REYES Machinery (China)’s Disc Separator Centrifuge (also called Disc Stack Centrifuge) is a professional high-speed centrifugal separation device, designed for continuous, precise separation of liquid-liquid, solid-liquid, or three-phase (liquid-liquid-solid) mixtures. Engineered to meet European and American industrial standards, our disc separator delivers exceptional performance, reliability, and ease of operation, making it a core equipment for modern processing plants worldwide.

With a compact stacked conical disc design, the REYES disc separator generates centrifugal force up to 12,000 G, efficiently separating fine particles as small as 0.5μm. It is widely used in various industries, providing stable separation results while reducing operational costs and downtime for our global clients.

Working Principle

The disc separator from REYES Machinery (China) operates based on the principle of centrifugal sedimentation, ensuring efficient and continuous separation:

Mixed materials enter the high-speed rotating disc bowl through the central feed inlet.
The stacked conical discs inside the bowl create a large settling surface, significantly shortening the travel distance of particles.
Denser solids and heavy liquids are pushed outward to the bowl wall by centrifugal force, while lighter liquids move toward the center of the bowl.
Separated phases are discharged through dedicated outlets, and solids are removed via automatic self-cleaning or manual discharge systems (customizable by REYES Machinery (China)).
Our optimized disc gap, rotation speed, and discharge logic ensure maximum separation efficiency and minimal energy consumption.

Core Advantages

Superior Separation Efficiency: Up to 12,000 G centrifugal force, capable of separating particles ≥0.5μm, with 30% higher throughput than standard models – engineered by REYES Machinery (China) for precision.
Automatic Self-Cleaning: Full or partial automatic slag discharge (0.1–0.9 seconds), enabling 24/7 continuous operation, reducing downtime by 40% and saving labor costs.
Hygienic & Corrosion-Resistant: All product-contact parts are made of 316L/304 stainless steel, FDA/CE/ISO certified, perfectly suited for food, dairy, and pharmaceutical applications – a testament to REYES Machinery (China)’s quality commitment.
Stable & Low-Maintenance: Equipped with imported bearings and precision gearboxes, with vibration monitoring and low noise (<75dB). REYES Machinery (China) provides a 2-year warranty and global after-sales support for long-term reliability.
Fully Customizable: Flexible bowl sizes, speed control, and 2-phase/3-phase configurations, tailored by REYES Machinery (China) to meet your specific application needs.

Technical Specifications

REYES Machinery (China) offers a full range of disc separator centrifuges, with standard models and custom options to match your production requirements. All specifications comply with international industrial standards:

Model	Capacity (L/h)	Drum diameter (mm)	Drum speed (r/min)	G-force	Power (KW)	Weight (kg)	Dimension (mm * mm * mm)
DHZ230	1500	230	6930	6170	2.2	240	850X625X985
DHZ300	2000	300	7200	6950	4	550	865X645X1100
DHZ360	3000	360	6500	7000	5.5	650	900X600X1150
DHZ400	4000	400	6500	7500	7.5	750	1100X1050X1250
DHZ500	8000	500	5800	8500	18.5	1200	1250X1000X1550

Industrial Applications

REYES Machinery (China)’s Disc Separator Centrifuge is widely used in key industries across Europe and America, providing tailored separation solutions for each sector:

Food & Beverage: Milk skimming, cream separation, juice clarification, beer/wine filtration, edible oil refining.
Pharmaceutical & Biotechnology: Vaccine separation, protein extraction, fermentation broth clarification, herbal extract purification.
Oil & Chemical: Biodiesel separation, lubricating oil purification, chemical solvent recovery, wastewater treatment.
Other Industries: Algae harvesting, latex concentration, mineral processing, beverage syrup purification.

Why Choose REYES Machinery (China)

As a leading manufacturer of industrial centrifuges in China, REYES Machinery (China) has 15+ years of experience in designing and producing disc separators, decanter centrifuges, and tubular centrifuges. We are committed to providing high-quality, cost-effective solutions for global B2B clients, with a focus on:

Strict quality control: Each unit undergoes full performance testing before shipment, complying with European and American standards.
Global service network: On-site installation, commissioning, training, and 24/7 technical support for clients worldwide.
Customization capability: Tailored designs based on your feed material, capacity, and separation requirements.
Competitive pricing: High-quality equipment with low operating costs and high ROI for industrial processors.
