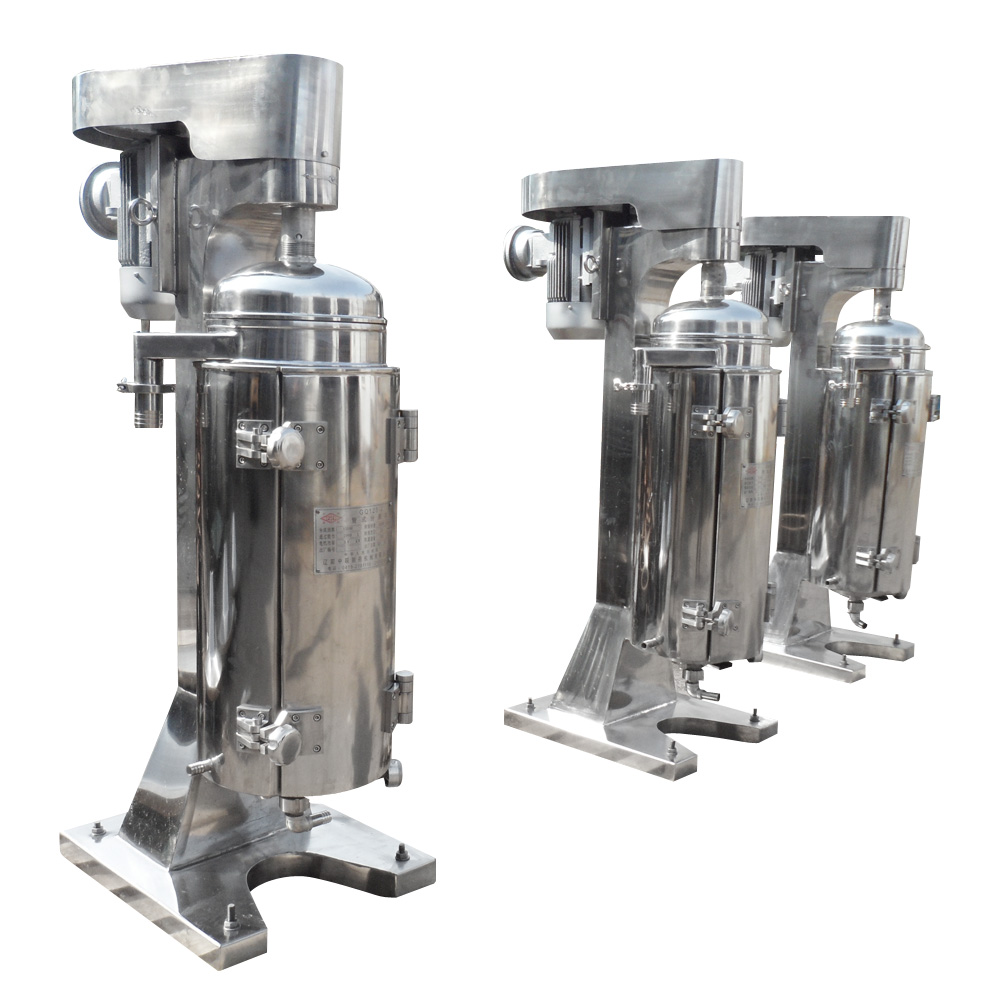

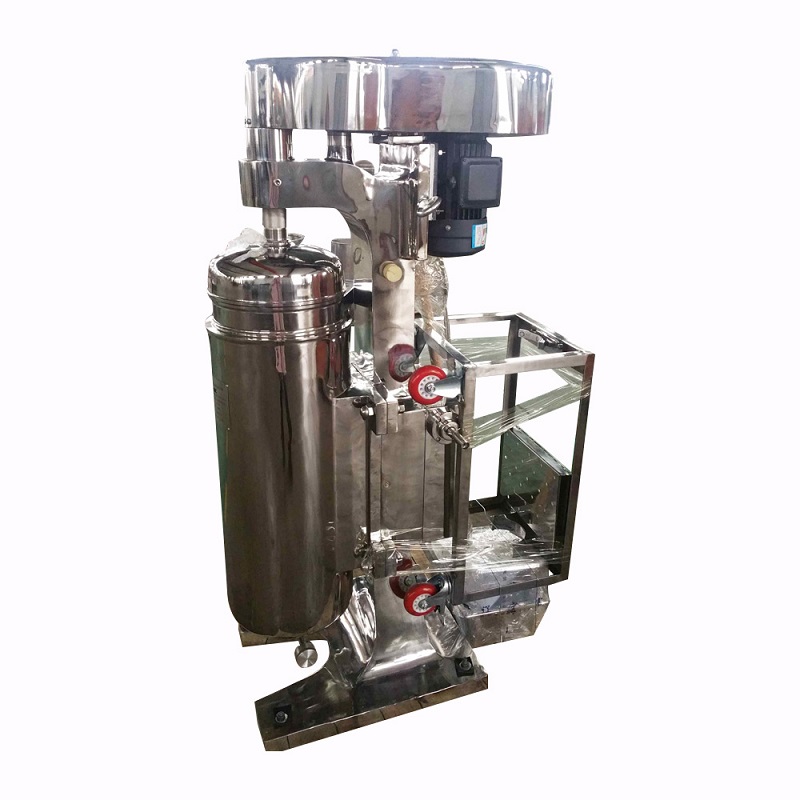

Algae Seaweed Harvest Tubular Centrifuge
Introduction
GQ Tubular centrifuge separator is mainly used for separating all kinds of suspension which is difficult to be separated,especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs&plants extracts,various medicine liquor ,liquid medicine, wine clarify oral liquid, the extraction of paint, dye, as well as various proteins, alga,fruit gels, and purification of rubber solution, coal tar,graphite,saponin, milk,pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, spore and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap,etc.
Working Principle
The REYES tubular centrifuge operates at an ultra-high rotating speed (up to 20000 rpm), generating extremely strong centrifugal force (up to 15000G). When the material enters the tubular drum from the bottom, solid particles with higher density are quickly thrown to the drum wall and accumulate; the clarified liquid rises along the drum wall and overflows from the top outlet. After a certain period of operation, the machine stops to discharge the accumulated solids. This design is suitable for small-batch, high-precision separation, especially for materials with valuable components that need to be fully recovered.
Key Features
- Ultra-high rotating speed up to 20000 rpm, centrifugal force up to 15000G for fine separation
- High separation precision, capable of separating solid particles as small as 0.01μm
- Compact structure, small footprint, easy to install and move
- 316L stainless steel drum, corrosion-resistant and suitable for harsh materials
- Smooth operation, low noise, and low vibration
- Simple operation, easy to disassemble and clean
- Suitable for small-batch, high-value material separation
- Optional automatic control system for intelligent operation
Technical Parameters
| Items | GQ75 | GQ105 | GQ125 | GQ150 |
|---|---|---|---|---|
| Bowl Diameter(mm) | 75 | 105 | 125 | 150 |
| The Effective Height（mm） | 450 | 730 | 730 | 730 |
| Bowl Volume(L) | 2.2 | 6 | 8 | 10 |
| Speed of Rotation(r/min ) | 19200 | 16300 | 15000 | 14000 |
| Separation Factor( ω2.r/g ) | 15600 | 15250 | 15750 | 14300 |
| Working pressure(MPa ) | ≥0.05 | |||
| Through Output Capacity for Clean Water(L/h) | 600 | 1200 | 2000 | 3000 |
| Motor Power(kW ) | 1.5 | 3.0 | 4.0 | 4.0 |
| Dimensions(L×W×H)(mm) | 760x450x1120 | 840×500×1600 | 900×550×1600 | 900×550×1600 |
| Weight（Kg） | 200 | 570 | 610 | 665 |
| The above specification and parameters for reference only. | ||||
Applications
REYES Machinery (China) tubular centrifuge is widely used in:
- Pharmaceutical industry: antibiotic clarification, Chinese medicine extraction, vaccine purification
- Biotech industry: biological cell separation, protein purification, enzyme separation
- Chemical industry: catalyst recovery, fine chemical clarification, solvent purification
- Food industry: high-end edible oil purification, fruit juice concentration clarification
- Cosmetics industry: cosmetic raw material refinement, essential oil purification
- Environmental protection: small-batch hazardous waste treatment
- Laboratory and pilot-scale production separation
Why Choose REYES Machinery (China)
- Professional R&D and production experience in high-speed tubular centrifuges
- Customized solutions based on separation precision, material properties and batch size
- Strict quality control, ISO 9001 and CE certified, meeting international standards
- High-quality materials and precision processing ensure ultra-high speed and stable operation
- Factory direct price, cost-effective for pilot-scale and small-batch production
- One-year warranty and 24/7 global after-sales technical support
- On-site installation, commissioning and operation training
- Mature solutions for pharmaceutical and biotech industries worldwide
FAQ
Q1: What is a tubular centrifuge used for?
A: A tubular centrifuge is used for high-speed fine solid-liquid separation, mainly applied in pharmaceutical, biotech, and small-batch high-precision separation projects by REYES Machinery (China).
Q2: What is the maximum speed of REYES tubular centrifuge?
A: Our tubular centrifuge has a maximum speed of up to 20000 rpm, generating centrifugal force up to 15000G for fine particle separation.
Q3: Is the tubular centrifuge suitable for small-batch production?
A: Yes. Tubular centrifuges are ideal for small-batch, high-precision separation, especially for valuable materials that need full recovery.
Q4: Can REYES customize tubular centrifuges for specific industries?
A: Yes. REYES Machinery (China) customizes tubular centrifuges according to your separation precision, material viscosity and production capacity.
Q5: How to clean the tubular centrifuge?
A: Our tubular centrifuge is easy to disassemble and clean, with optional CIP self-cleaning function for food and pharmaceutical industries.
Q6: What is the service life of REYES tubular centrifuge?
A: With high-quality materials and precision processing, our tubular centrifuge has a service life of 5–8 years, with regular maintenance.
